TF6051-DK

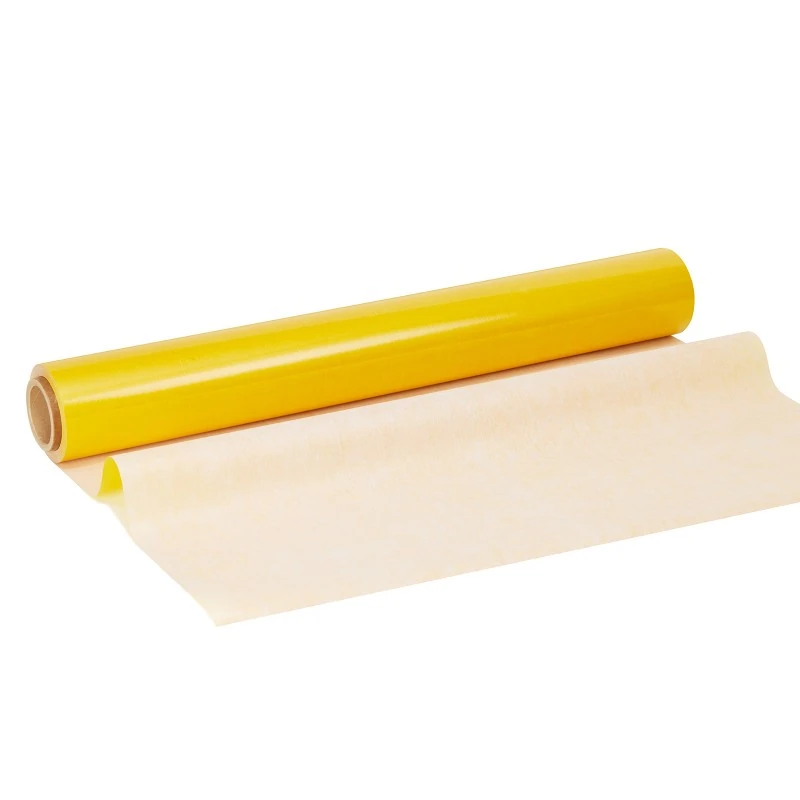

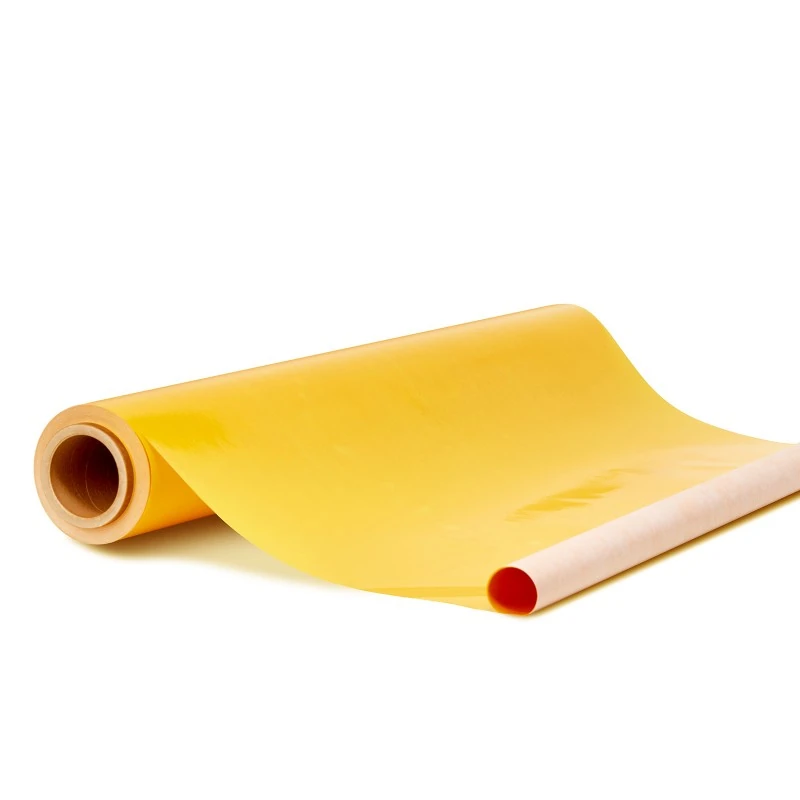

Polyimide film laminated with NOMEX paper combines high-temperature resistance, electrical insulation, and mechanical strength. Ideal for transformers, motors, and generators, it ensures reliable performance in harsh electrical and thermal environments.

TF6051-DK is composited by one layers of Nomex paper and one layer of polyimide film , with excellent dielectric performance and good mechanical properties, good flexibility, can reduce the thickness of groove insulation, increase the groove full rate, and has a good shape, easy to use. It has low media loss, excellent high temperature characteristics,suitable for a variety of harsh working environments, and good compatibility with varnish.

Products detail information

Type No. TF6051-DK Made-to-order
Thickness mm 0.08
Width mm 1000
Length m 1500
Colour YELLOW
Tensile strength Mpa MD/TD ≥135    ≥115
Elongation  % ≥35
Heat contraction rate 150°C/ 400°C % ≤1.0  ≤3.0
Electrical Operating Frequency intensityMv/m ≥150
Surface resistivity 200°C Ω ≥1.0x10^13
Volume resistivity 200°C Ω.m ≥1.0x10^10
Relatine dielectric Constant 48-62HZ 3.5+/-0.4
Dielectric loss factor 48-62HZ ≤4.0x10^﹣3
Long-term Heat-resistance temperature index ≥180
Note: The data in the table are typical values obtained from the testing of mass-produced products and should not be regarded as guaranteed values

Applications

The heat resistant grade is class H. For insulation between slots, inter-wire insulation, phase insulation, lining thermal insulation of H-class motors and electrical appliances,and dry type transformers .
