TF300

TF300

TF300 provides stable adhesion, high heat resistance, and reliable insulation. Suitable for PCB masking, coil wrapping, battery insulation.

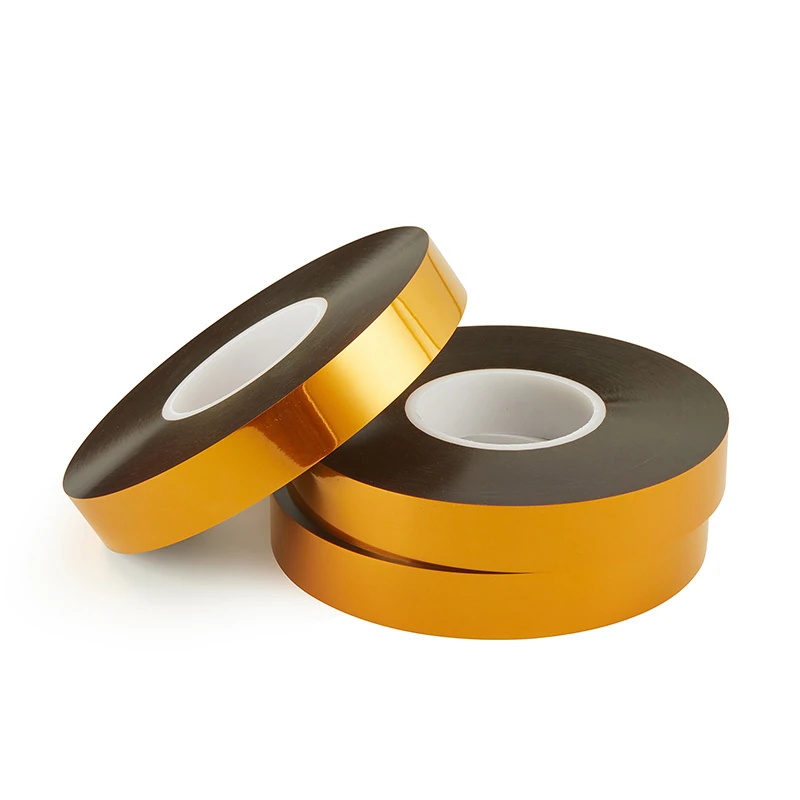

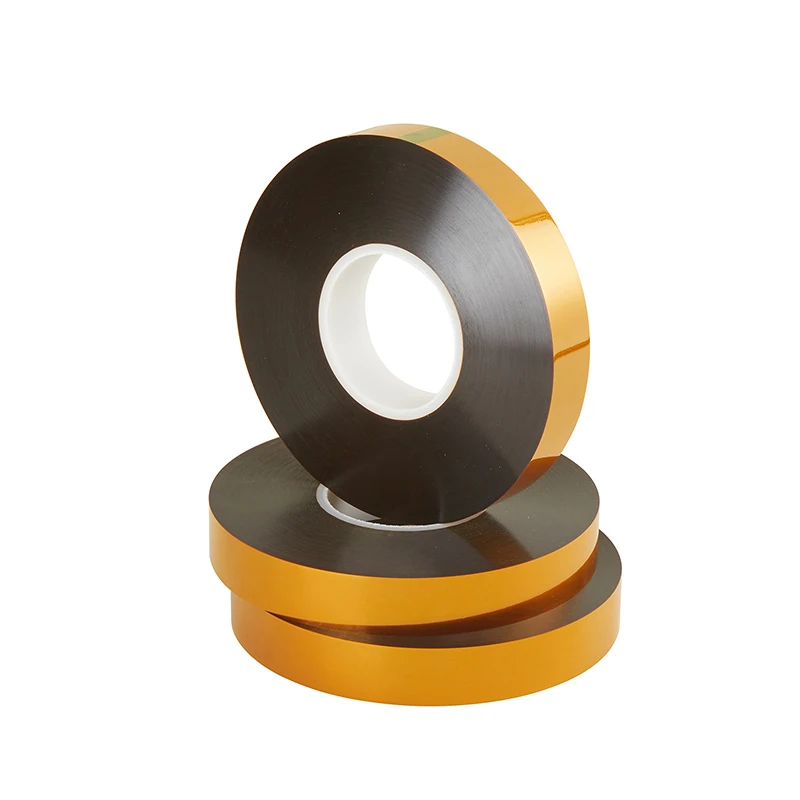

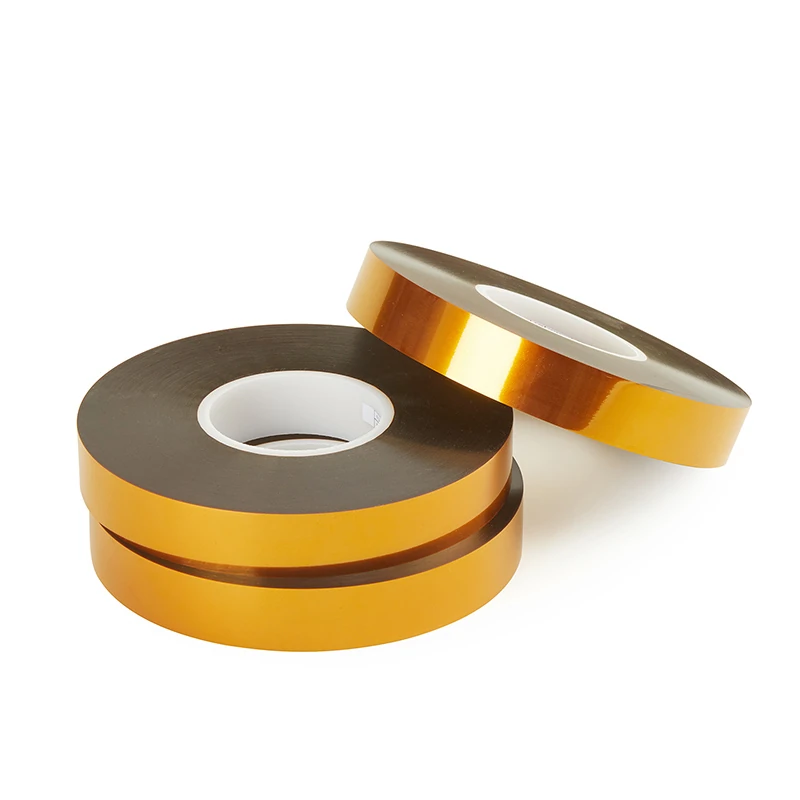

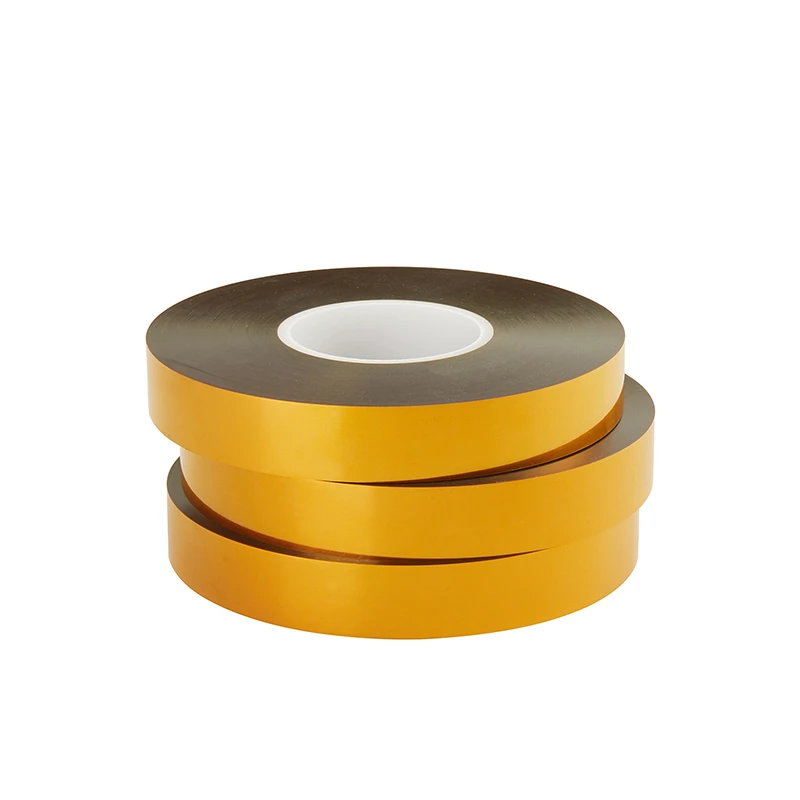

TF300 polyimide tape is made from polyimide film with acrylic adhesive. Polyimide films have set the industry standard for over 45 years in high performance, reliability, and durability, offering a unique combination of electrical, thermal, chemical and mechanical properties that withstand extreme temperatures, vibration and other demanding environments. Polyimide films enable innovative design solutions across a variety of industries including, consumer electronics, solar photovoltaic and wind energy, aerospace, automotive and industrial applications. Polyimide films also have high dielectric strength. The silicon adhesive and acrylic adhesive protection leaves no residue.

Products detail information

Product Number TF300 TF300 TF300 TF300 TF300 TF300 TF300
Total thickness mm 0.03 0.035 0.05 0.055 0.06 0.08 0.1
Adhestion to steel(N/25mm) 3--4 3--4 5--6 4--6 9--10 5--6 6--10
Tensile strength(N/25mm) ≥14 ≥14 ≥8 ≥8 ≥60 ≥60 ≥60
Temp.rating 110℃(248℉) 110℃(248℉) 110℃(248℉) 110℃(248℉) 110℃(248℉) 110℃(248℉) 110℃(248℉)
Insulation class H H H H H H H
Note: The data in the table are typical values obtained from the testing of mass-produced products and should not be regarded as guaranteed values.

Applications

Automotive sensor and manifolds, insulating circuit boards, etching, fiber optics cable, high-temperature powder coating, semiconductor manufacturing, wave soldering during circuit board assembly
Our products can serve as a substitute for DuPont’s Kapton.
×
