TF310

TF310

TF310 offers superior heat resistance, reliable insulation, and strong adhesion. Ideal for wave soldering, coil wrapping, battery insulation, and high-temperature masking in electronics.

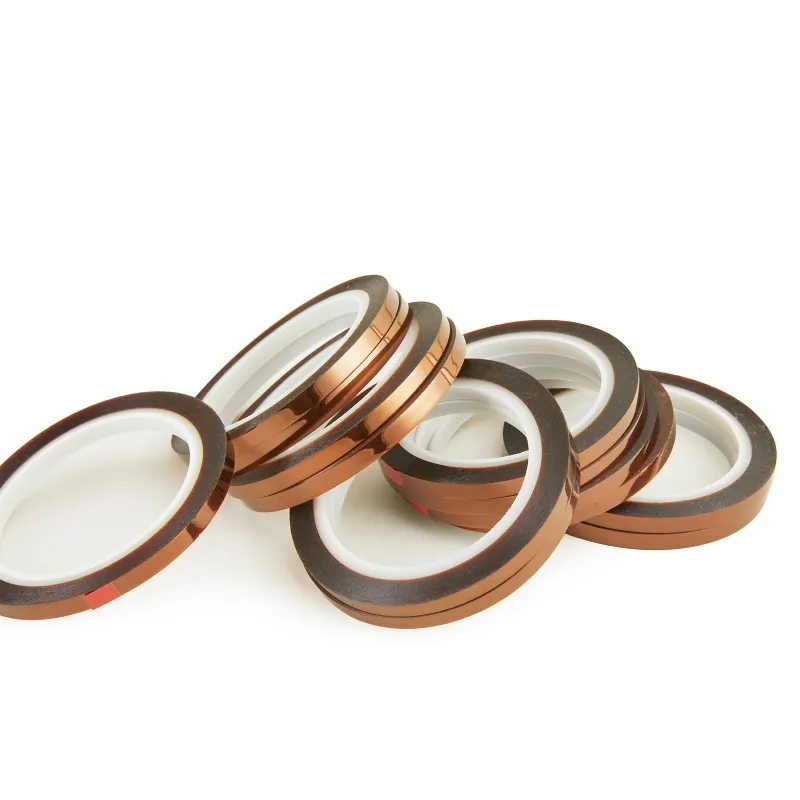

TF310 polyimide tape is made from polyimide film with silicone. Polyimide films have set the industry standard for over 45 years in high performance, reliability, and durability, offering a unique combination of electrical, thermal, chemical and mechanical properties that withstand extreme temperatures, vibration and other demanding environments. Polyimide films enable innovative design solutions across a variety of industries including, consumer electronics, solar photovoltaic and wind energy, aerospace, automotive and industrial applications. Polyimide films also have high dielectric strength. The silicone and acrylic adhesive protection leaves no residue.

Product detail information

Product Number TF310 TF310 TF310 TF310 TF310 TF310 TF310 TF310
Total thickness mm(mil) 0.03(1.2) 0.05(2.0) 0.06(2.4) 0.08(3.2) 0.1(4.0) 0.12(4.8) 0.15(6.0) 0.18(7.2)
Colour Amber Amber Amber Amber Amber Amber Amber Amber
Adhesion to steel(N/25mm) 3--4 4--5 5--6 3--6 6--7 5--6 4.5--6.5 4.5--6.5
Tensile strength(KG/25mm) 8 10 10 20 20 20 36 40
Elongation% 30--40 45--50 45--50 55--60 55--60 60--70 70--75 80--85
Corrosion resistance coefficient 1 1 1 1 1 1 1 1
Dielectric strength(Volt) ≥2500 ≥5000 ≥5000 ≥7000 ≥7000 ≥10000 ≥12000 ≥16000
Temp.rating 260℃(500℉) 260℃(500℉) 260℃(500℉) 260℃(500℉) 260℃(500℉) 260℃(500℉) 260℃(500℉) 260℃(500℉)
Insulation class H H H H H H H H
Note: The data in the table are typical values obtained from the testing of mass-produced products and should not be regarded as guaranteed values.

Applications

Automotive sensor and manifolds, insulating circuit boards, etching, fiber optics cable, high-temperature powder coating, semiconductor manufacturing, wave soldering during circuit board assembly.
Our products can serve as a substitute for DuPont’s Kapton.
×
