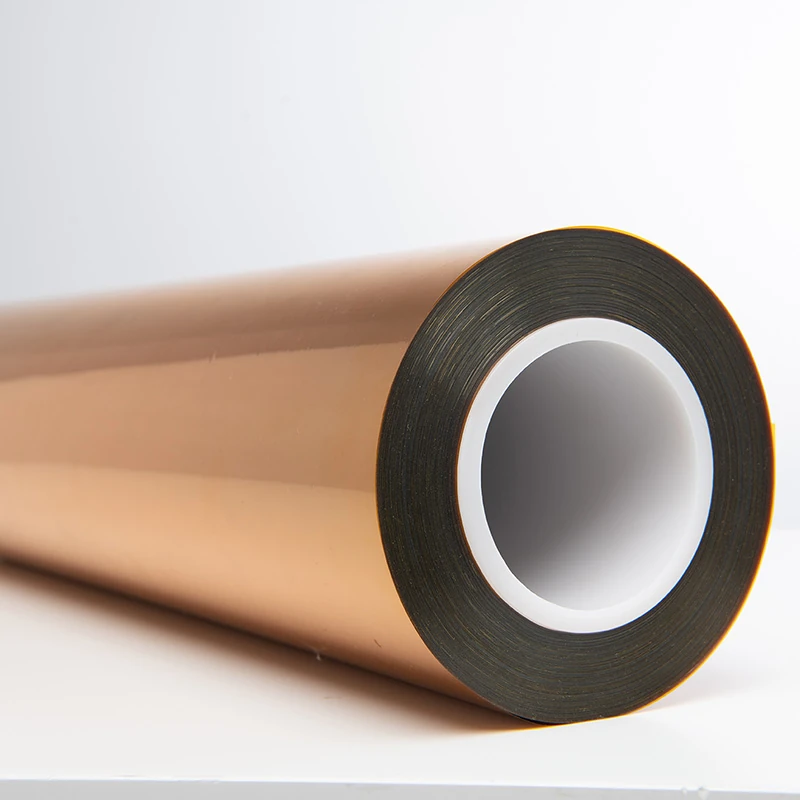

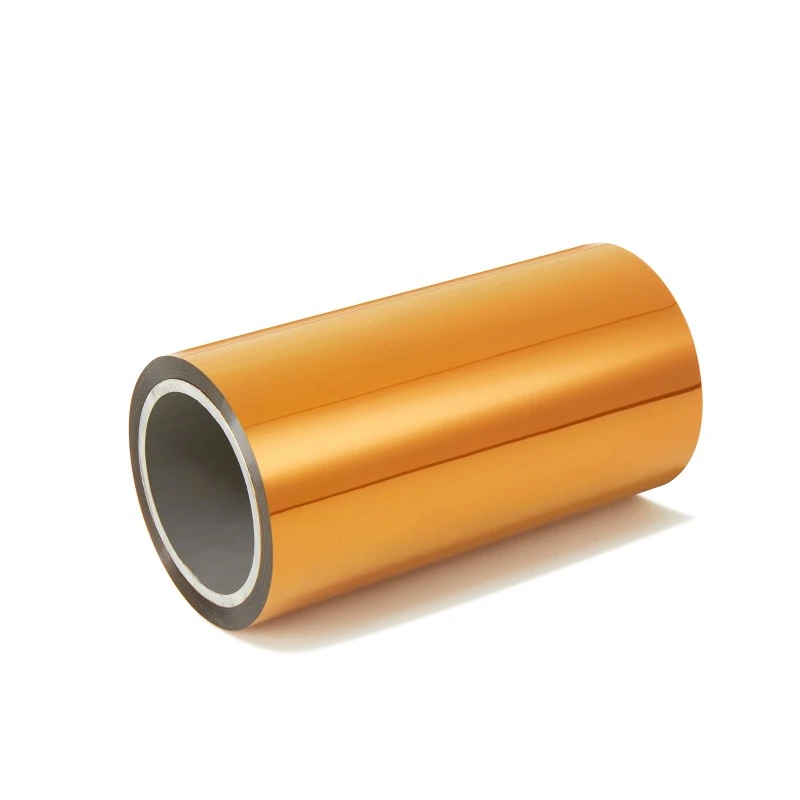

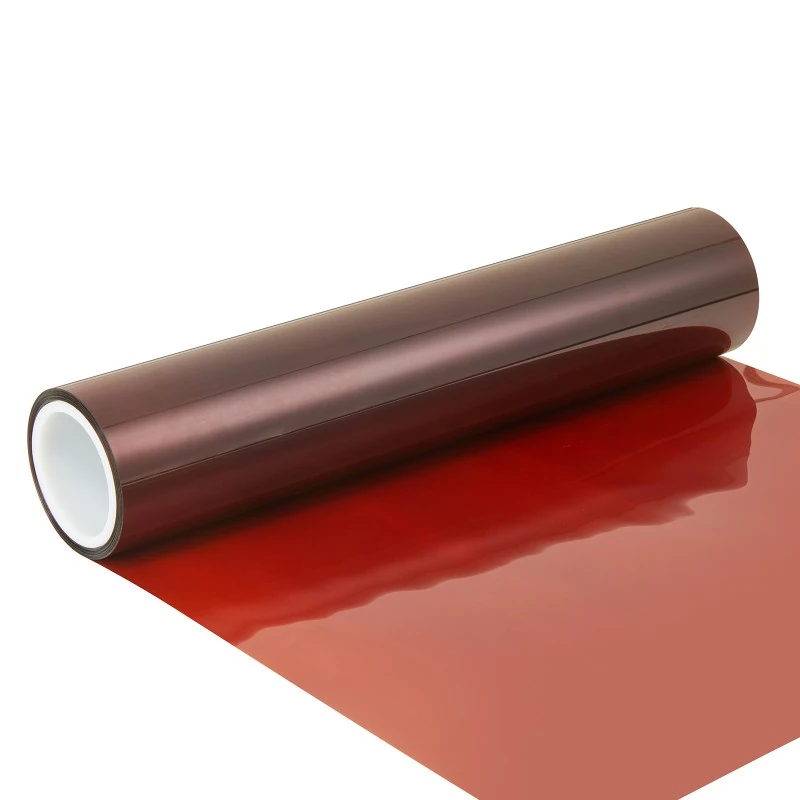

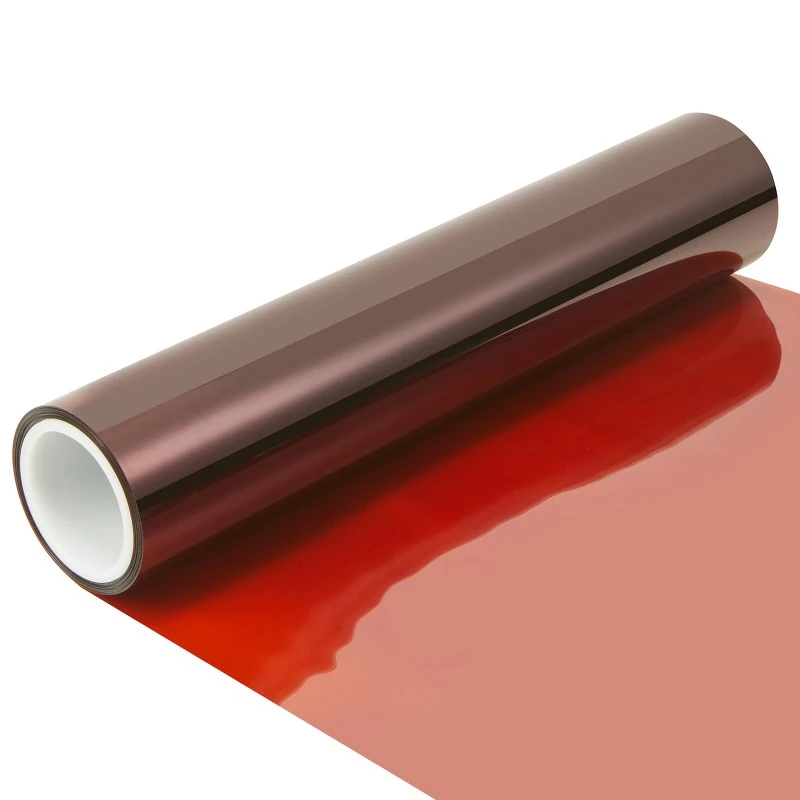

High-performance polyimide film: excellent thermal stability, mechanical strength, dielectric properties. Ideal for electronics, aerospace, automotive, flexible circuits.
| Type No. | TF6051#0125 | TF6051#25 | TF6051#30 | TF6051#40 | TF6051#50 | TF6051#75 | TF6051#100 | TF6051#125 | TF6051#150 | TF6051#175 | TF6051#200 | TF6051#225 | TF6051#250 |
| Thickness mm | 0.0125 | 0.025 | 0.03 | 0.04 | 0.05 | 0.075 | 0.1 | 0.125 | 0.15 | 0.175 | 0.2 | 0.225 | 0.25 |
| Tensile strength MpaMD/TD | ≥135 / ≥115 | ≥135 / ≥115 | ≥135 / ≥115 | ≥135 / ≥115 | ≥135 / ≥115 | ≥135 / ≥115 | ≥135 / ≥115 | ≥95 / ≥95 | ≥95 / ≥95 | ≥95 / ≥95 | ≥95 / ≥95 | ≥95 / ≥95 | ≥95 / ≥95 |
| Elongation % | ≥35 | ≥35 | ≥35 | ≥35 | ≥35 | ≥35 | ≥35 | ≥35 | ≥35 | ≥35 | ≥35 | ≥35 | ≥35 |
| Heat contraction rate 150°C/400°C % | ≤1.0 ≤3.0 | ≤1.0 ≤3.0 | ≤1.0 ≤3.0 | ≤1.0 ≤3.0 | ≤1.0 ≤3.0 | ≤1.0 ≤3.0 | ≤1.0 ≤3.0 | ≤1.0 ≤3.0 | ≤1.0 ≤3.0 | ≤1.0 ≤3.0 | ≤1.0 ≤3.0 | ≤1.0 ≤3.0 | ≤1.0 ≤3.0 |
| Electrical Operating Frequency intensityMv/m | ≥150 | ≥150 | ≥150 | ≥150 | ≥150 | ≥150 | ≥150 | ≥150 | ≥150 | ≥150 | ≥150 | ≥150 | ≥150 |
| Surface resistivity 200°C Ω | ≥1.0x10^13 | ≥1.0x10^13 | ≥1.0x10^13 | ≥1.0x10^13 | ≥1.0x10^13 | ≥1.0x10^13 | ≥1.0x10^13 | ≥1.0x10^13 | ≥1.0x10^13 | ≥1.0x10^13 | ≥1.0x10^13 | ≥1.0x10^13 | ≥1.0x10^13 |
| Volume resistivity 200°C Ω.m | ≥1.0x10^10 | ≥1.0x10^10 | ≥1.0x10^10 | ≥1.0x10^10 | ≥1.0x10^10 | ≥1.0x10^10 | ≥1.0x10^10 | ≥1.0x10^10 | ≥1.0x10^10 | ≥1.0x10^10 | ≥1.0x10^10 | ≥1.0x10^10 | ≥1.0x10^10 |
| Relatine dielectric Constant 48-62HZ | 3.5+/-0.4 | 3.5+/-0.4 | 3.5+/-0.4 | 3.5+/-0.4 | 3.5+/-0.4 | 3.5+/-0.4 | 3.5+/-0.4 | 3.5+/-0.4 | 3.5+/-0.4 | 3.5+/-0.4 | 3.5+/-0.4 | 3.5+/-0.4 | 3.5+/-0.4 |
| Dielectric loss factor 48-62HZ | ≤4.0x10^﹣3 | ≤4.0x10^﹣3 | ≤4.0x10^﹣3 | ≤4.0x10^﹣3 | ≤4.0x10^﹣3 | ≤4.0x10^﹣3 | ≤4.0x10^﹣3 | ≤4.0x10^﹣3 | ≤4.0x10^﹣3 | ≤4.0x10^﹣3 | ≤4.0x10^﹣3 | ≤4.0x10^﹣3 | ≤4.0x10^﹣3 |
| Long-term Heat-resistance temperature index | ≥180 | ≥180 | ≥180 | ≥180 | ≥180 | ≥180 | ≥180 | ≥180 | ≥180 | ≥180 | ≥180 | ≥180 | ≥180 |
