Applications of Black Polyimide Film in Lithium Batteries, FPC and Aerospace High-Temperature Insulation
In advanced manufacturing industries, material reliability under extreme conditions directly affects product performance and service life. Black polyimide film has become an essential material in lithium batteries, flexible printed circuits (FPC), and aerospace electronics due to its excellent thermal stability, electrical insulation, dimensional stability, and optical performance.
Black polyimide film outperforms conventional insulation materials in high-temperature resistance, electrical insulation, and environmental reliability. This article explores its basic characteristics and main application areas, and analyzes why it has become the material of choice for many industries.
What Is Black Polyimide Film
Black polyimide film is a purpose-engineered covering film for flexible circuit boards and electronic assemblies in which structural confidentiality and high-performance insulation are critical requirements. By adding black pigmentation to traditional polyimide materials, it maintains the excellent thermal resistance, electrical insulation, and mechanical stability of polyimide while providing additional light-blocking and shielding capabilities.
Unlike traditional amber polyimide film, black polyimide film prevents optical exposure of circuit layouts, making it especially suitable for applications where circuit confidentiality and manufacturing precision are critical.
Key Properties of Black Polyimide Film
Excellent Thermal Stability for High-Temperature Applications
Black polyimide is a high temperature polyimide film that preserves structural integrity and mechanical performance even during prolonged heat exposure. With minimal thermal shrinkage even after extended high-temperature exposure, black polyimide film ensures dimensional stability during soldering, thermal processing, and temperature cycling. This makes it especially suitable for applications that demand precise alignment from production through to end-of-life.
Strong Electrical Insulation Performance
Black polyimide film is also an advanced electrical insulation film with excellent dielectric properties.
Black polyimide film is also an advanced electrical insulation film with excellent dielectric properties. High volume and surface resistivities ensure effective insulation and short-circuit prevention in high-density assemblies, while consistent dielectric strength across varying thicknesses delivers excellent high-voltage performance.
UV Resistance and Dimensional Stability
The black pigmentation improves light-blocking capability and provides excellent UV resistance. Combining the inherent dimensional stability of polyimide materials, black polyimide films demonstrate long-term reliability in harsh environments. This makes it suitable for applications involving exposure to sunlight or UV-rich environments, where material degradation could compromise the integrity of the system.
Low Gloss Surface for Inspection Protection and EMI Shielding
Low-gloss surfaces minimize AOI glare, reducing CCD errors and increasing efficiency; this directly translates to higher yields and lower inspection costs in mass production. Its opaque surface also protects circuit layouts from optical exposure while providing additional EMI shielding.
Why Choose Black Polyimide Film for High-Temperature Insulation
In high-temperature environments, traditional insulating materials such as polyester or polyethylene naphthalate may shrink, age, or experience a decline in electrical performance. In applications where heat resistance and insulation stability are critical, black polyimide films offer reliable performance.
Superior Heat Resistance in Harsh Environments
In applications such as battery systems, aerospace electronics, and high-power devices, operating temperatures often exceed the limits of conventional insulation materials. Black polyimide—as a high temperature resistant film—maintains its electrical and mechanical properties under continuous heat exposure, with its molecular structure providing inherent resistance to thermal degradation for reliable long-term operation.
Excellent Mechanical Strength and Stability
Black polyimide film offers strong mechanical performance, including high tensile strength and good elongation. These characteristics enable the film to withstand bending, lamination, vibration, and thermal stress without cracking or deformation. The film’s low coefficient of thermal expansion maintains dimensional stability over a wide temperature range.
Dimensional Stability During Processing
One of the critical advantages of black polyimide film is its low heat shrinkage during thermal processing. Black polyimide film’s dimensional stability prevents misalignment and delamination caused by high shrinkage during soldering or lamination.
Applications of Black Polyimide Film in Different Industries
Black Polyimide Film for Lithium Battery Applications
Lithium batteries—especially in EVs and energy storage—require insulation that withstands high voltage, heat, and long-term use. Safety and reliability depend largely on insulation quality between cells and connections.
Black polyimide film is widely used for connection insulation, isolating cells and busbars to prevent arcing and enhance safety. Its high dielectric strength supports reliable insulation performance in high-voltage battery systems, while its thermal stability ensures performance remains consistent even when batteries operate at elevated temperatures.
Additionally, as a protective insulation layer, black polyimide film helps isolate battery cells and reduce the risk of thermal impact spreading between components. In the event of localized overheating, the material’s heat resistance helps contain the issue, contributing to battery pack safety.
Black Polyimide Film for Flexible Printed Circuit Boards (FPC)
Flexible printed circuits are widely used in consumer electronics, automotive systems, medical devices, and other compact electronics. Black polyimide film is an ideal FPC cover film material, combining flexibility, durability, and protection.
As a cover film, it protects copper circuits from moisture, contamination, and mechanical stress. Its flexibility accommodates bending and folding without cracking, ensuring reliable performance during assembly and service life—including dynamic flex applications.
The black surface conceals circuit patterns to protect proprietary designs, while the low-gloss finish reduces AOI reflection, minimizing CCD errors and improving manufacturing efficiency.
Black Polyimide Film in Aerospace and High-Temperature Electronics
Aerospace applications demand materials that withstand extreme temperatures, vibration, radiation, and extended service life—with zero tolerance for failure.
Black polyimide film is used in aerospace systems for wiring, flexible circuit, and component insulation. Its high-temperature performance ensures stable operation near heat sources and in thermally fluctuating environments.
With an excellent strength-to-weight ratio, it provides effective insulation with minimal weight penalty—critical in aerospace, where every gram affects fuel efficiency and payload.
Its chemical stability and environmental resistance ensure long-term reliability in systems where maintenance is often impractical.
High-Performance Black Polyimide Film Solutions
To meet the growing demand for black polyimide film across these diverse applications, we have developed specialized product series tailored to specific industry requirements. Understanding the performance parameters of available options is essential for engineers and procurement professionals making material selection decisions.

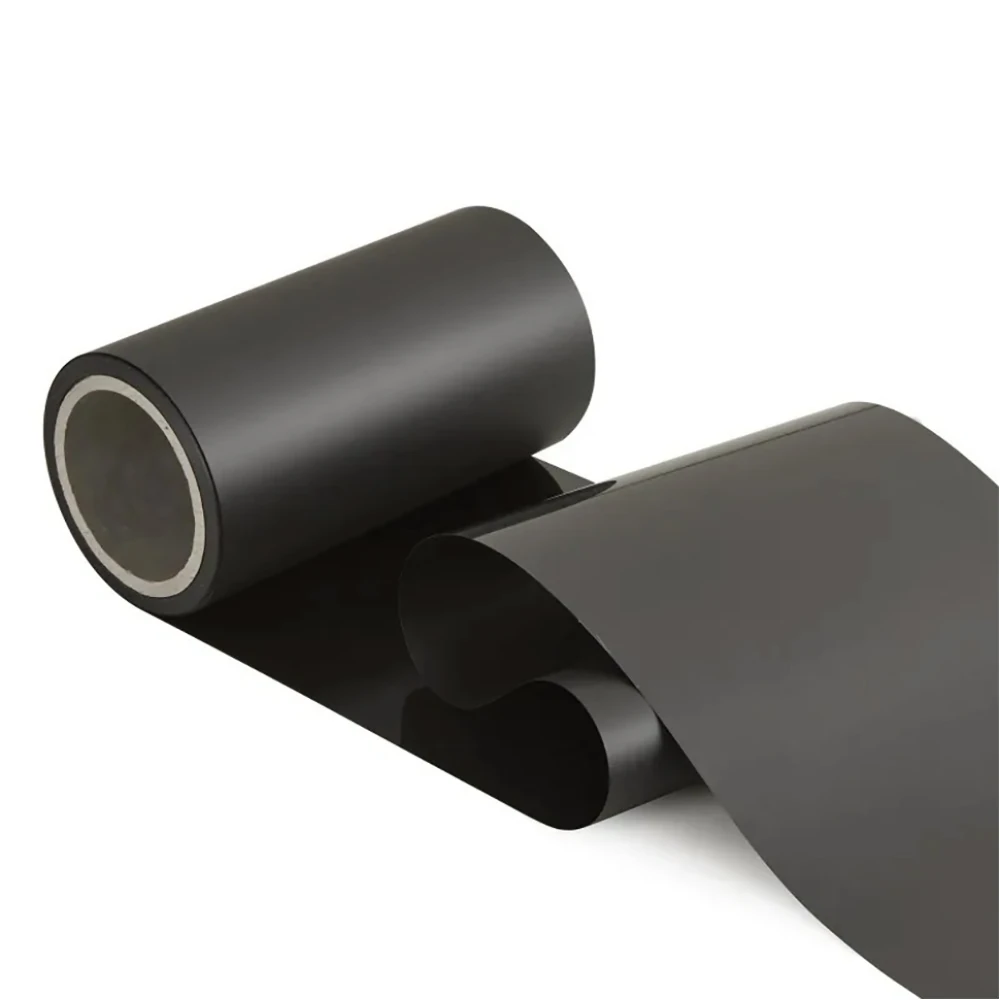

The TFB6051 series represents one such solution, engineered to deliver consistent performance across a range of thickness options. Available in 18μm, 20μm, 25μm, and 50μm thicknesses, the series accommodates different application needs—from thin and flexible cover films for compact electronics to thicker grades for applications requiring enhanced mechanical protection and dielectric strength.
Key performance parameters of the TFB6051 series include:
Thermal stability: Heat shrinkage of only 0.1% at 200°C for 2 hours, ensuring dimensional accuracy during thermal processing
Electrical insulation: Dielectric strength of 110 V/μm, providing reliable isolation for high-voltage applications
Mechanical properties: Tensile strength ranging from 170 MPa to 185 MPa, with elongation of 50% to 65%, offering a balance of strength and flexibility
Consistent resistivity: Volume resistivity of 4.5×10¹³ Ω·cm and surface resistivity of 3×10¹⁵ Ω across all thickness grades
Low gloss surface: Glossiness of 25 GU, reducing glare during automated optical inspection
These performance characteristics make the TFB6051 series suitable for lithium battery insulation, FPC cover film applications, and aerospace electronic systems where reliability under extreme conditions is paramount.
Conclusion
Black polyimide film has become an important material for lithium battery insulation, FPC protection, and aerospace high-temperature applications. Its combination of thermal stability, electrical insulation performance, mechanical strength, and optical advantages makes it suitable for modern electronic and energy systems where reliability cannot be compromised.
The key properties of this material—including high temperature resistance, excellent dielectric strength, dimensional stability, low gloss surface, and UV resistance—address specific challenges across multiple industries. From protecting proprietary circuit designs to ensuring safe operation of high-voltage battery systems, black polyimide film continues to enable innovation in demanding applications.
For engineers and procurement professionals, understanding application-specific performance requirements and matching them with the right product specifications is essential to achieving reliable, long-term performance.
