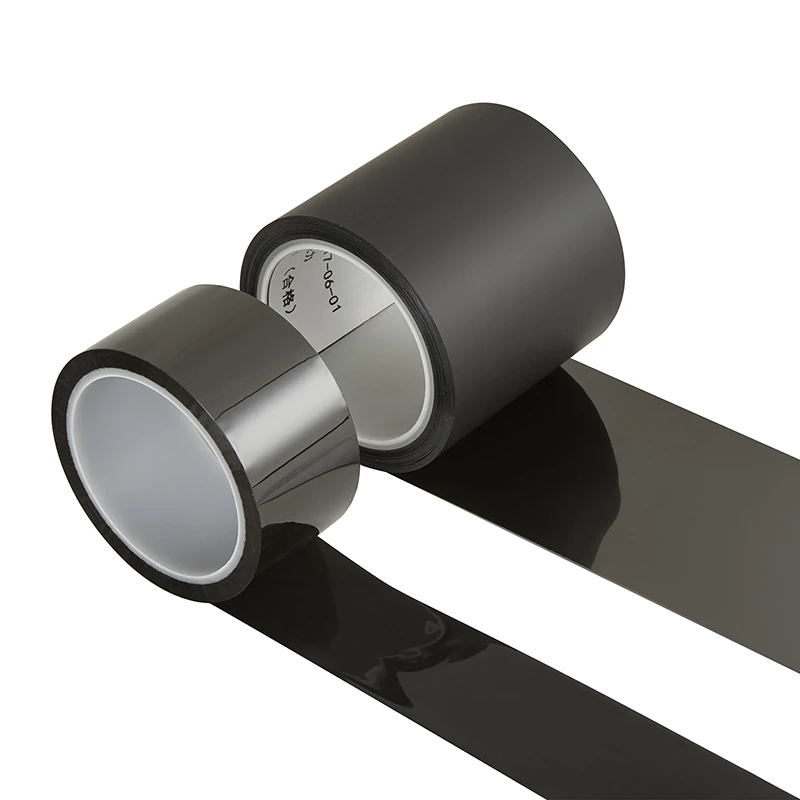

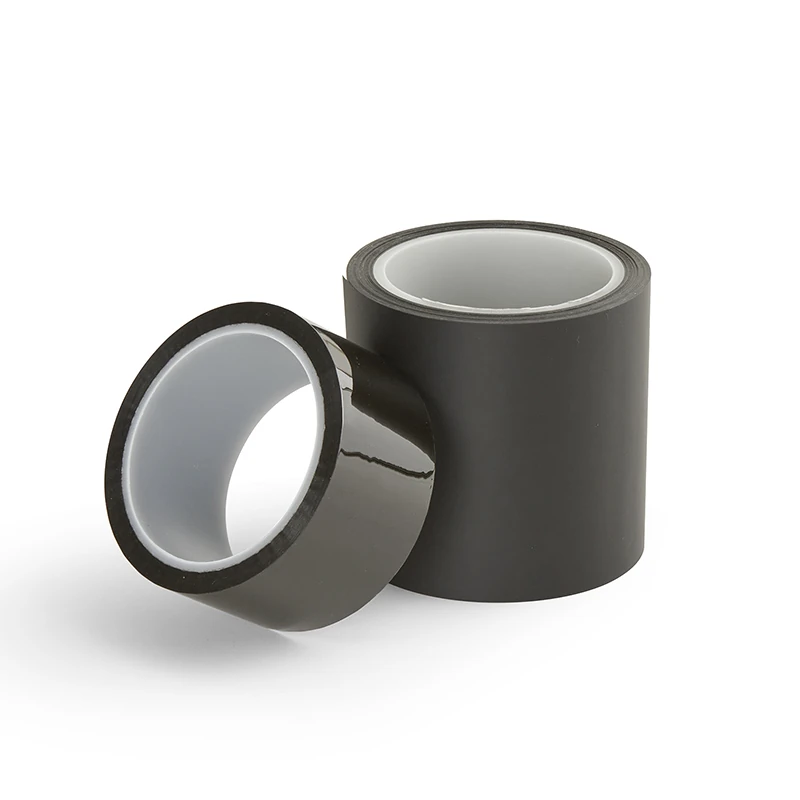

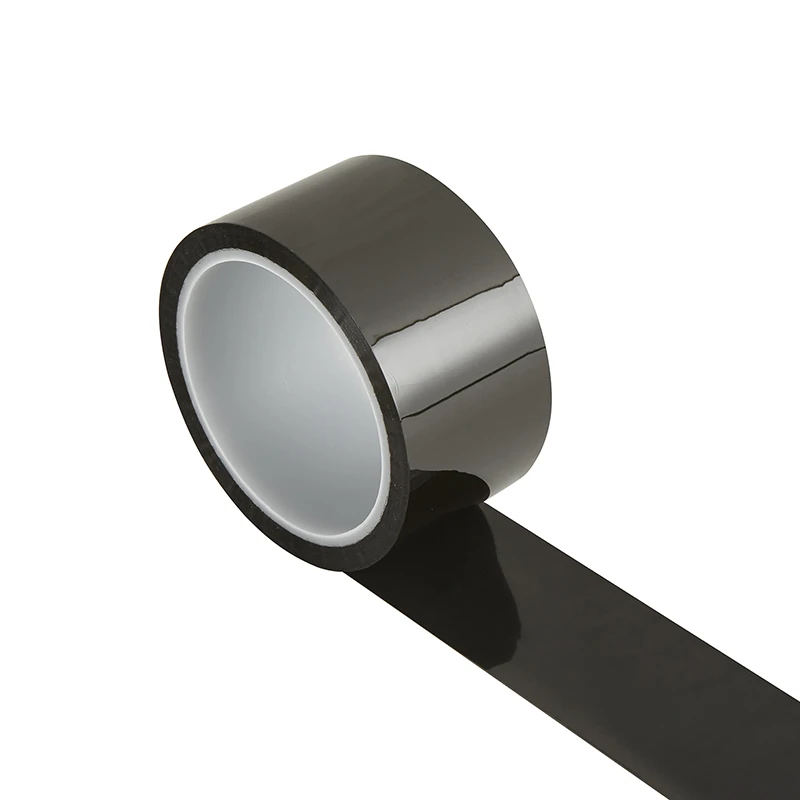

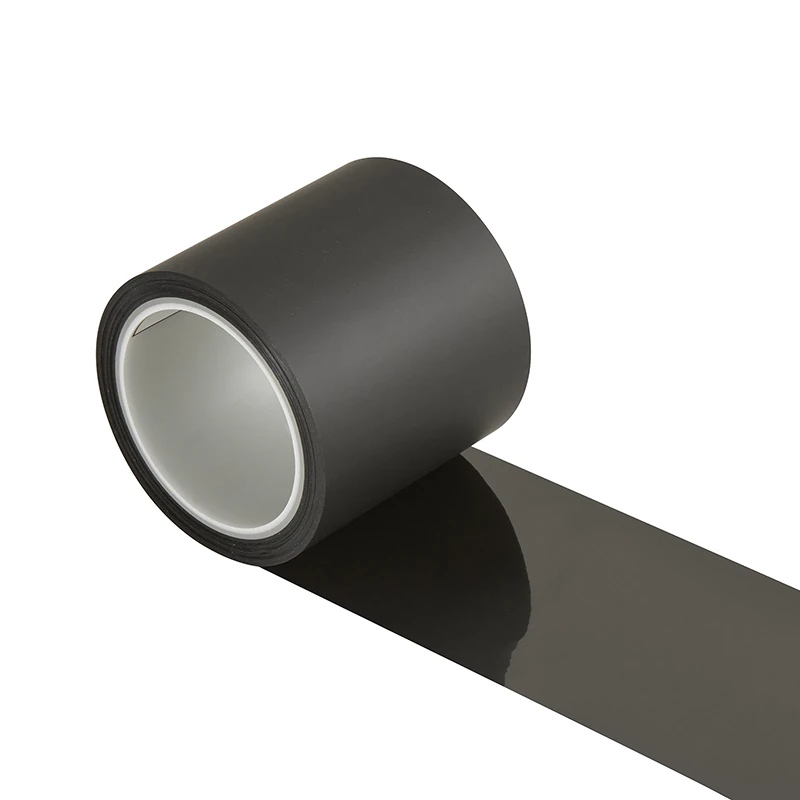

Black polyimide tape offers high heat resistance, excellent dielectric strength, and good adhesion. Ideal for electrical insulation, wave soldering, coil wrapping, and high-temperature masking in electronics manufacturing.
| Product Number | Black TF310 | Black TF310 | Black TF310 | Black TF310 | Black TF310 | Black TF310 |
| Total thickness mm | 0.03 | 0.05 | 0.055 | 0.06 | 0.08 | 0.1 |
| Colour | black | black | black | black | black | black |
| Adhestion to steel(N/25mm) | 4--7 | 4--7 | 4--7 | 4--7 | 4--7 | 4--7 |
| Tensile strength(KG/25mm) | 8-40 | 8-40 | 8-40 | 8-40 | 8-40 | 8-40 |
| Elongation% | 30--85 | 30--85 | 30--85 | 30--85 | 30--85 | 30--85 |
| Corrosion resistance coefficient | 1 | 1 | 1 | 1 | 1 | 1 |
| Dielectric strength(Volt) | 4200-7000 | 4200-7000 | 4200-7000 | 4200-7000 | 4200-7000 | 4200-7000 |
| Temp.rating | 260℃(500℉) | 260℃(500℉) | 260℃(500℉) | 260℃(500℉) | 260℃(500℉) | 260℃(500℉) |
| Insulation class | H | H | H | H | H | H |
