Polyimide Tape for High-Temperature Masking: A Complete Guide to Electrical Insulation (2026)
When your manufacturing process involves wave soldering, coil winding, or high-temperature shielding, ordinary tape often falls short. They may melt, leave behind residue, or even lose their adhesion at critical moments. For decades, polyimide tapes have been used in the electronics, automotive, aerospace and energy sectors due to their heat resistance and electrical insulation properties.This tape is both heat-resistant and leaves no adhesive residue upon removal; therefore, it can be used for temporary masking and protection, as well as for long-term insulation purposes.
This guide provides an overview of polyimide tapes, covering their key properties, common applications, comparative analysis with other high-temperature tapes, and key factors to consider when selecting tapes for your production line.
1.What Is Polyimide Tape?

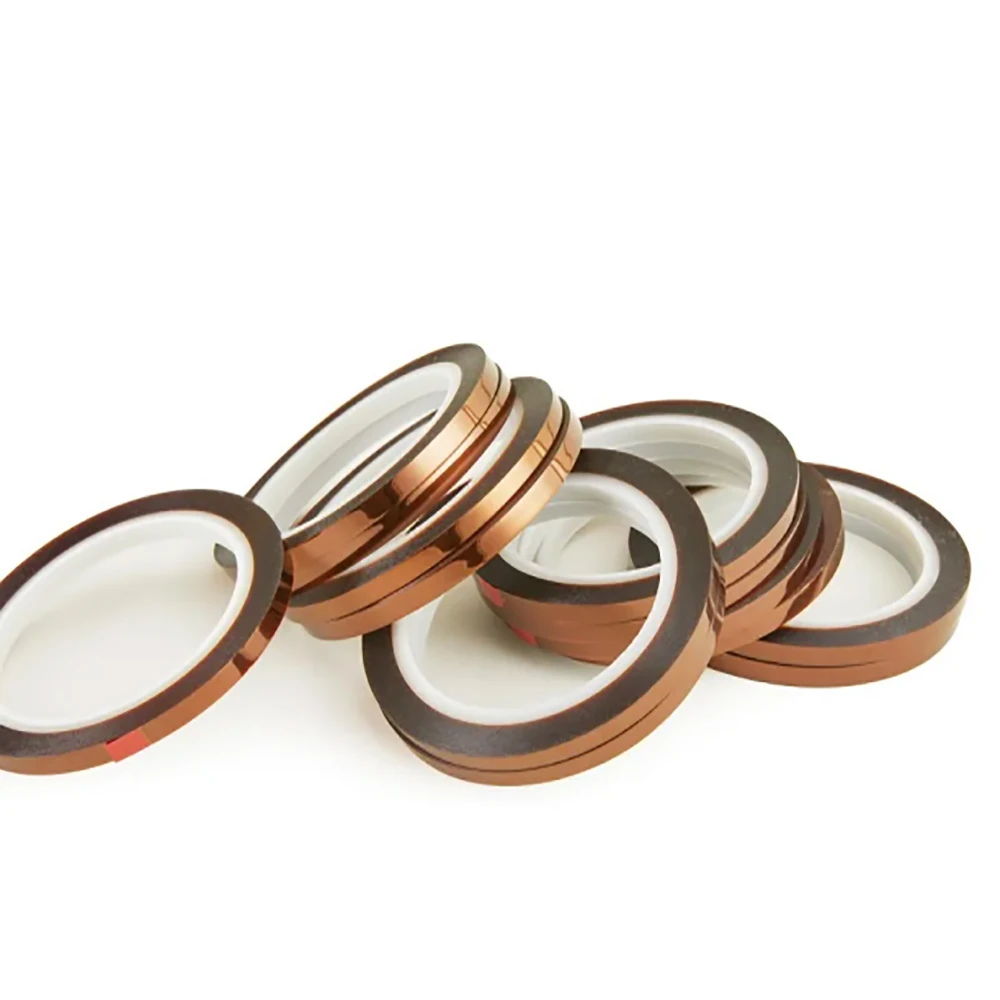

Polyimide tape is a high-performance adhesive tape made by coating a thin polyimide film with a silicone-based adhesive.
Three characteristics:
Heat resistance –handles high temperatures without breaking down.
Electrical insulation – protecting sensitive components from the influence of electric current
Clean removal – peel off without leaving any residue
These properties allow it to serve as both temporary protection and permanent insulation.
2.Common Applications Across Various Industries
Polyimide tape is widely utilized across numerous industries. Taking our product, TF310 polyimide tape, as an example, the following are some typical application scenarios:
2.1 Electronics Manufacturing：Wave soldering masking
PCB insulation and protection
Coil and transformer wrapping
Gold finger protection during reflow soldering
Flexible circuit splicing
2. 2New Energy (EV Batteries, PV, Energy Storage)
Battery cell insulation
Busbar wrapping and protection
High-temperature component insulation
2.3 Semiconductor & Display
High-temperature masking during packaging processes
2.4 Aerospace & Defense
Wire harnessing and cable bundling
Low-outgassing applications
2.5 Automotive Industry
Sensor insulation
Engine compartment wire harnessing
2.6 Industrial, Medical & Home Appliances
High-temperature powder coating
X-ray equipment
3D printing build surfaces
3.How to Select the Right Polyimide Tape
3.1 Temperature Requirements
What is the maximum temperature the tape will be exposed to?
Is it continuous heat or short-term peaks?
Will it be subjected to repeated heating and cooling?
3.2 Removal Requirements
Is this for temporary shielding or permanent insulation?
Is it necessary to remove all adhesive residue after removing the tape?
Will it be removed hot or after cooling down?
3.3 Electrical Requirements
Does the application require dielectric strength?
Is the tape being used to insulate live components?
3.4 Surface Compatibility
What material will the tape adhere to?
Is the surface clean, dry, and free of oil or dust?
Differences in adhesive quality, thickness control, and consistency of manufacturing processes can directly affect the actual application results. Our TF310 tape is made with silicone adhesive, tested for clean, residue-free removal, and is REACH and RoHS compliant. We can provide samples for you to test and verify in real-world application scenarios.
4.Application and Removal Tips
Before Application
Clean the surface thoroughly.
Isopropanol is suitable for most surfaces.
During Application
Cut the tape to the desired length and shape.
Apply with firm, even pressure.
Smooth out any air bubbles.
After Use (for temporary masking)
Please wait for the tape to cool before removing it.
Take your time when peeling it off.
Storage
Store rolls in a cool, dry place.
Avoid direct sunlight, high humidity, and extreme temperatures.
When stored properly, polyimide tape typically has a shelf life of 12 months from the date of manufacture.
5.TF310 Polyimide Tape Specifications
| Parameter | Value |
| Backing Material | Polyimide film |
| Adhesive Type | Silicone |
| Color | Amber |
| Continuous Operating Temperature | 260°C (500°F) |
| Short-Term Peak Temperature | Up to 300°C |
| Dielectric Strength | ≥4,000V |
| Tensile Strength | ≥70 MPa |
| Elongation at Break | ≥30% |
| Peel Adhesion (tape to copper) | ≥1.2 N/10mm |
| Peel Adhesion (tape to tape) | ≥1.2 N/10mm |
| Thickness Tolerance | ±0.008mm |
| Width Tolerance (10-50mm) | ±0.5mm |
| Width Tolerance (>50mm) | ±1mm |
| Roll Length | 30-60 meters (customizable) |
| Removal Characteristics | Clean removal, no residue |
| Certifications | REACH, RoHS |
| Standard | Q/12YJ4212-2005 |
6.FAQ
1: What are the advantages of your company?
A: Our advantages include: (1) high-quality polyimide film with consistent performance; (2) responsive customer service and technical support; (3) customized solutions including thickness, width, and roll length to meet your specific needs.
2. Is polyimide tape flame retardant?
Polyimide films have inherent flame retardancy. Our TF310 meets industry flame retardant standards.
3: How should the product be stored and transported?
A: The products should be stored in a dry and clean warehouse upon receipt. The shelf life is approximately one year. After expiration, the product can still be used if it passes quality inspection according to the standard. Caution: avoid moisture and mechanical damage during storage and transportation.
4. What thicknesses are available?
TF310 polyimide tapes range from 0.03mm to 0.18mm. Thinner tapes conform better to curves; thicker tapes offer more durability.
5. How are the products packed?
A: The film is wound onto a pipe core and supplied in rolls. Each roll is well packed and sealed with a plastic bag, then placed into a dry and clean box to ensure protection during transport.
7.Conclusion
Polyimide tape is a proven solution for high-temperature masking and electrical insulation. Its high temperature resistance, electrical insulation, and lack of adhesive residue make it a reliable choice for industries such as electronics, automotive, aerospace, and energy.
When selecting polyimide tape, please pay close attention to your specific needs: maximum temperature resistance, ease of removal, electrical performance requirements, and surface compatibility. In addition, adhesive quality, thickness control, and manufacturing consistency are all crucial.
TF310 is built with silicone adhesive, tested for clean removal, and certified to REACH and RoHS standards. It is available in various widths, lengths, and thicknesses to meet different production needs.Our products can be used in similar applications as Kapton tape.
For assistance with selection, customization, or to request samples, contact us.
