What Is Polyimide Tape? TF300 Applications, Benefits & Manufacturer Guide
Polyimide tape is a high-performance insulation material. It consists of a polyimide film coated with a pressure-sensitive adhesive. This polyimide film tape is widely used in electrical and industrial environments where it must withstand heat, electrical load, and mechanical stress while maintaining stable performance. Typical applications include motors, transformers, coils, and electronic components. In industrial practice, the term “Kapton” is sometimes used to refer to polyimide tape. However, Kapton is only one well-known brand within the broader category of polyimide materials.
1. Why Is Polyimide Tape Widely Used?
Polyimide tape combines multiple functions in a single material. It performs reliably in environments where ordinary tapes fail due to heat, electrical stress, or mechanical movement. Its main advantage is stability under extreme conditions. Whether under continuous thermal cycling, electrical load, or mechanical vibration, it maintains consistent performance.
1.1 Electrical Insulation Performance
Polyimide tape provides excellent electrical insulation. It helps prevent current leakage and improves safety in electrical systems. In high-density electronic assemblies, it is widely used to protect sensitive components and reduce the risk of short circuits.
1.2 Mechanical Strength
The tape maintains strong mechanical integrity during winding, wrapping, and assembly processes. It resists tearing and deformation even under continuous stress. This makes it suitable for coils, wire harnesses, and precision electrical structures.
1.3 Temperature Resistance
Polyimide tape remains stable under high-temperature conditions. It is suitable for industrial heating processes and environments with frequent temperature changes.
1.4 Surface Quality
The polyimide film surface is smooth and uniform. It has no bubbles, no pinholes, and no uneven edges. These characteristics improve processing reliability and manufacturing consistency.

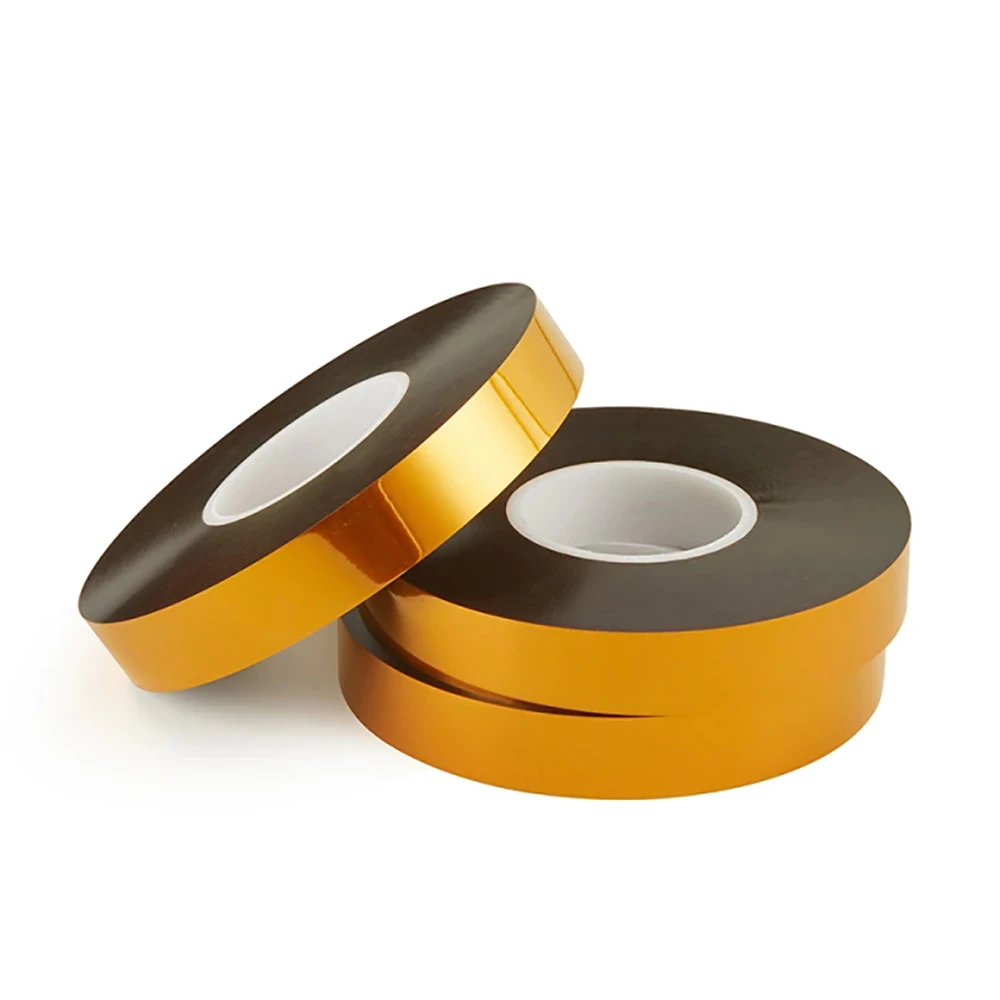

2. TF300 Polyimide Tape Overview
TF300 is a polyimide pressure-sensitive tape. It is made from polyimide film coated with an acrylic adhesive. This tape is specifically designed for electrical insulation in industrial environments. It offers stable adhesion and reliable insulation, making it suitable for electrical systems that require consistent material performance during processing and operation.
3. Key Properties of TF300
TF300 is engineered for stable performance in electrical, mechanical, and industrial processing environments. It delivers consistent physical and electrical properties across all production applications.
3.1 Adhesion Performance
TF300 provides reliable adhesion to various substrates, ensuring stability during assembly and long-term use.
Tape-to-tape peel strength ≥ 1.2 N/10mm
Tape-to-copper peel strength ≥ 1.2 N/10mm
These values ensure consistent adhesion and reduce the risk of lifting, peeling, or separation under thermal or mechanical stress.
3.2 Mechanical Properties
TF300 offers high tensile strength and good flexibility, making it suitable for winding and automated processing.
Tensile strength ≥ 70 MPa
Elongation at break ≥ 30%
This balance of strength and elasticity allows the tape to resist tearing while adapting to complex shapes and tight spaces.
3.3 Electrical Insulation Performance
TF300 provides stable dielectric insulation for electrical protection of coils, transformers, and electronic assemblies.
Dielectric strength ≥ 90 MV/m
This high dielectric performance helps reduce electrical leakage and improves safety in high-voltage or compact systems.
3.4 Processing Stability
TF300 has uniform thickness and stable surface properties, making it compatible with automated manufacturing systems. This improves production efficiency, reduces batch-to-batch variation, and enhances the reliability of final products in large-scale manufacturing.
3.5 Surface and Structural Quality
TF300 features a smooth and uniform polyimide film surface. Key characteristics include no bubbles, no pinholes, no folding or deformation, and clean, stable edges. These features improve processing accuracy and reduce defects in winding, lamination, and assembly operations.
3.6 Thermal Adaptability
TF300 remains stable under moderate thermal conditions commonly found in industrial electrical systems. It retains structural integrity during normal thermal cycling, ensuring consistent long-term performance.
4. Applications of Polyimide Tape
Polyimide tape is used across industries that require insulation, durability, and heat resistance.
Electrical Equipment – Insulation and protection for motors, transformers, and coils.
Electronics Manufacturing – Insulation and protection for flexible circuits, communication devices, and consumer electronics.
New Energy Industry – Electrical insulation and structural stability for energy systems.
Semiconductor Industry – Precision manufacturing environments that require stable insulation materials.
5. Polyimide Tape Manufacturer
Tianjin Fortune International Industry and Trade Co., Ltd. is a professional polyimide tape supplier, offering custom and OEM solutions for global clients. Founded in Tianjin in 2000, the company began investing in polyimide film production in 2004. It is one of the early manufacturers in China’s electrical insulation industry.
5.1 Production Capacity
| Item | Data |
| Factory area | 86,000 m² |
| Production lines | 6 |
| Annual capacity | 280 tons |
5.2 Product Range
- Polyimide film
- Polyimide tape
- F46 tape
- Heat-set pressure-sensitive insulation tapes
- Electrical insulation materials
Film thickness range: 0.015 mm to 0.25 mm
5.3 Global Markets
Products are exported to the United States, Japan, South Korea, India, Singapore, Italy, Russia, Thailand, Austria, and Taiwan (China).
6. How to Choose Polyimide Tape
Selecting the right polyimide tape depends on the specific application and operating conditions. Key factors to consider include:
Electrical insulation requirements
Temperature range (-70°C to 180°C)
Adhesive type (acrylic-based)
Mechanical strength requirements
The application environment
7. Frequently Asked Questions
Q: What is polyimide tape used for?
A: Electrical insulation in motors, transformers, coils, and electronic components.
Q: What is TF300 made of?
A: Polyimide film and acrylic adhesive.
Q: Which industries use it?
A: Electronics, electrical equipment, semiconductors, and new energy.
8. Conclusion
Polyimide tape is a high-performance insulation material widely used in electrical and industrial applications. Its combination of heat resistance, electrical insulation, and mechanical strength makes it well suited for demanding environments. TF300 provides reliable performance for industrial insulation applications and serves as a stable, practical material solution for modern electrical manufacturing systems. For more information or to request a quote, contact our sales team today.
