Black TF310 Polyimide Tape: Properties, Specifications, and Industrial Uses

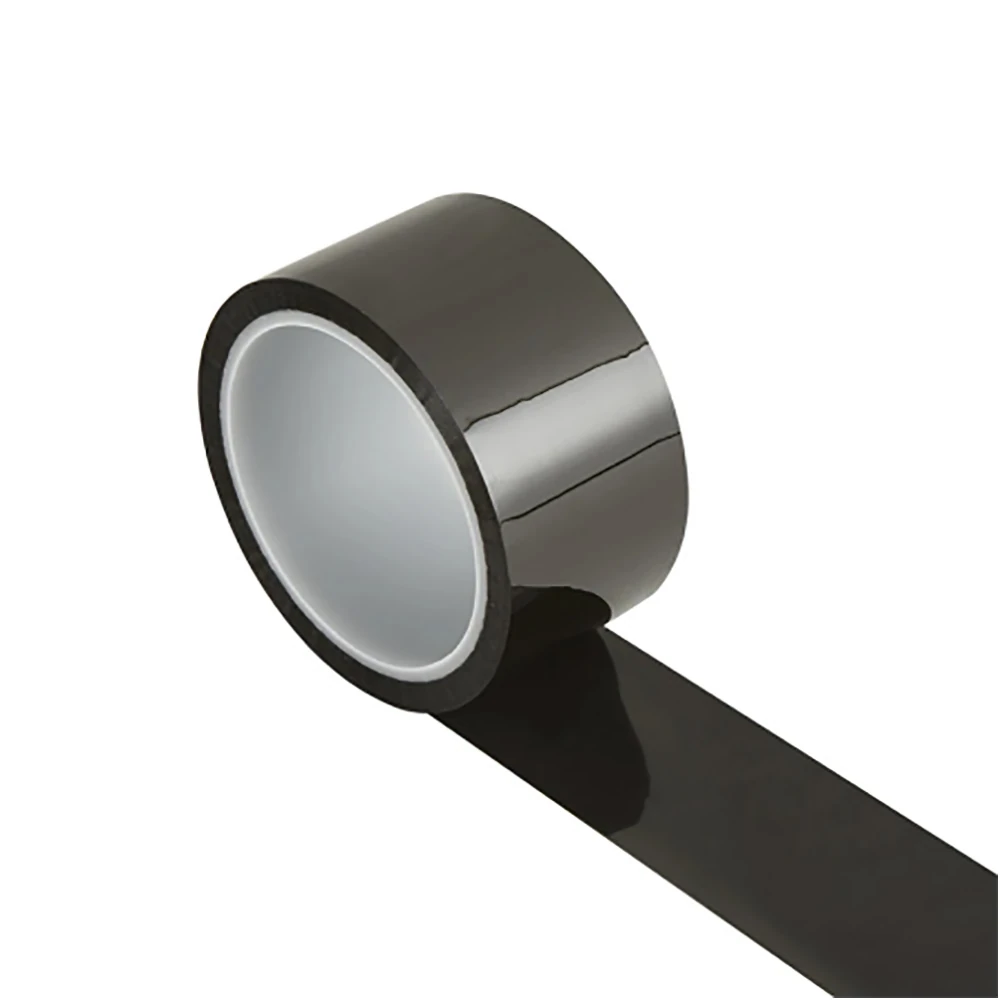

1. What Is Black Polyimide Tape?
Designed for demanding industrial environments, black polyimide tape consists of a black polyimide film and a silicone adhesive. This structure gives the tape excellent heat resistance, reliable electrical insulation, effective light blocking, and long-lasting durability. Because its substrate film is opaque and black, this tape is also very suitable for applications that require optical shielding.
The black TF310 is a specific product in this category. Its manufacturing process is designed to meet the stringent material performance requirements of industries such as electronics, aerospace, automotive, and general manufacturing—in which material failure is absolutely unacceptable. Unlike standard amber polyimide tape, TF310 is opaque black and offers excellent light-blocking properties. This feature is crucial for applications such as 3D printing and optical device assembly. In addition, the tape performs reliably under thermal and electrical stress and is suitable for processes such as wave soldering, coil wrapping, and high-temperature shielding.
2. Structure of Black TF310 Polyimide Tape
The performance of Black TF310 is rooted in its carefully engineered two-layer construction. Each layer contributes specific functional properties that make the tape suitable for high-temperature and high-voltage applications.
2.1 Polyimide Film Backing
The backbone of Black TF310 is an opaque black polyimide film. Polyimide is a synthetic polymer known for its outstanding thermal stability and dielectric strength. The film maintains dimensional stability over a wide temperature range, neither becoming brittle at low temperatures nor rapidly degrading under sustained heat. The uniform black pigment throughout the film gives it uniform light-blocking properties, making it an ideal choice for applications requiring optical isolation. The black TF310 offers film thickness options ranging from 0.03 mm to 0.1 mm, allowing users to choose the appropriate thickness based on their needs for adhesion and puncture resistance.
2.2 Silicone Adhesive Layer
Bonded to the polyimide film is a layer of silicone pressure-sensitive adhesive. Silicone adhesives are the go-to choice for high-temperature tapes. Silicone adhesives don’t soften, ooze, or lose grip under high heat the way acrylic or rubber types do. Black TF310’s silicone adhesive delivers 4 to 7 N/25mm adhesion on steel across all thicknesses. The result is reliable bonding in operation and clean removal after thermal cycling, with minimal residue on sensitive surfaces.
2.3 Overall Construction
Depending on the model you choose, the total thickness of the polyimide film and silicone adhesive composite ranges from 0.03 mm to 0.1 mm. Despite its thin profile, this construction delivers a tensile strength of 8 to 40 KG/25mm and an elongation range of 30 to 85 percent. The tape stretches to conform to irregular surfaces without breaking, then holds firm under thermal and mechanical stress.
3. Key Properties and Technical Specifications
3.1 High Temperature Resistance
With a 260°C (500°F) rating, Black TF310 high temperature polyimide tape surpasses the Class H insulation threshold of 180°C. That extra headroom means it withstands wave soldering, powder coating cycles, and long-running electrical equipment without structural or adhesive failure.
3.2 Excellent Electrical Insulation
The dielectric strength of Black TF310 spans 4200 to 7000 Volts—a measure of how much electric field the tape can withstand before breaking down. Even the thinnest 0.03 mm variant delivers solid insulation at the lower end of this range. For this reason, it is highly trusted in applications such as coil wrapping, transformer shielding, and PCB shielding. The Class H rating proves TF310 is made for high-temperature electrical jobs that demand two things: heat resistance and dependable dielectric performance.
3.3 Mechanical Strength and Flexibility
Tensile strength for Black TF310 ranges from 8 to 40 KG per 25 mm width. This measurement indicates the force required to break the tape when pulled lengthwise. The elongation percentage falls between 30 and 85 percent, reflecting the tape’s ability to stretch before breaking. These mechanical properties mean the tape can be applied under tension for tight coil wrapping, can conform to complex geometries, and resists tearing during handling and installation. The combination of strength and controlled elongation makes TF310 a practical choice for both manual and automated application processes.
3.4 Chemical and Corrosion Resistance
Black TF310 carries a corrosion resistance coefficient of 1. This value indicates that the tape is electrically non-corrosive, an essential characteristic for applications involving sensitive metal contacts, printed circuit board traces, and connector pins. The polyimide film itself is inherently resistant to many industrial chemicals, oils, and solvents, while the silicone adhesive maintains its properties when exposed to environmental contaminants.
4. Industrial Applications of Black TF310
4.1 Electronics Manufacturing
In electronics and circuit board assembly, Black TF310 is used extensively for wave soldering and high-temperature masking. The tape protects gold-plated contacts, edge connectors, and areas that must remain free of solder during the soldering process. Its high-temperature resistance ensures it survives preheat zones and solder wave contact without lifting, shrinking, or leaving adhesive residue. The opaque black color provides visual contrast against circuit boards, aiding in placement accuracy and post-process inspection.
4.2 Aerospace and Automotive
The aerospace and automotive industries use Black TF310 high temperature resistant tape for wire harnessing, sensor insulation, and thermal protection. Components in engine compartments, braking systems, and avionics bays experience extreme temperature cycling. TF310’s Class H insulation rating and 260 degrees Celsius temperature resistance make it suitable for these environments. The tape’s chemical resistance also supports its use around fuels, hydraulic fluids, and de-icing compounds without degradation.
4.3 Coil Wrapping and Electrical Insulation
Coil wrapping represents one of the most demanding electrical insulation applications. Transformers, inductors, and motor windings require insulation that can withstand both the heat generated during operation and the voltage stress between adjacent turns. Black TF310’s combination of dielectric strength from 4200 to 7000 Volts and Class H insulation makes it an appropriate outer wrap for such components, providing both electrical isolation and mechanical protection.
4.4 3D Printing and Precision Manufacturing
In 3D printing, Black TF310 turns heated build plates into stable, heat-resistant print surfaces. Silicone adhesive grips well at high 3D printer bed temperatures; the smooth polyimide surface aids first-layer adhesion. In mobile repair and precision work, it shields, protects, and temporarily bonds under heat.
5. Why Choose Black TF310: Advantages and Comparisons
The black TF310 stands out for its balanced combination of performance characteristics, which is often unavailable in ordinary high-temperature resistant tapes. Compared to amber polyimide tapes, the black pigmentation provides light shielding capabilities essential for light-sensitive processes. For electrical work, TF310 has two clear edges over fiberglass cloth tapes: a smoother surface finish and better dielectric strength. Compared to polyester or PVC tapes, TF310 operates at temperatures far beyond their degradation points.
The six thickness variants allow users to select the optimal balance of conformability, puncture resistance, and dielectric strength for their specific application. Regardless of the thickness chosen, the adhesion level remains constant. This means that stable and predictable performance can be obtained every time. Furthermore, TF310 achieves a corrosion resistance coefficient of 1, which means it is inherently free from electrochemical corrosion risks, making it particularly suitable for highly sensitive electronic assemblies where ionic contamination must be strictly controlled.
6. Conclusion
Black TF310 polyimide tape combines multiple properties to meet the stringent requirements of electronics manufacturing, aerospace systems, automotive parts, and precision industrial processes. It’s rated for temperatures up to 260°C, with dielectric strength between 4200 and 7000 Volts, tensile strength from 8 to 40 KG per 25mm, and a corrosion resistance coefficient of 1. You can get TF310 in thicknesses ranging from 0.03 mm to 0.1 mm. No matter which gauge you pick, you get the same reliable adhesion and insulation. For engineers and manufacturers seeking a high-temperature masking, electrical insulation, or light-shielding solution, Black TF310 represents a proven product backed by clearly defined technical specifications. If you are interested in our products, please feel free to contact us for a quote.
