Polyimide Tape for PCB Masking: Key Properties and Applications
What Is Polyimide Tape for PCB Masking?
PCB manufacturing includes processes such as etching and wave soldering, where certain areas of the board may need to be masked during processing. The tape needs to hold securely on the surface while providing the heat resistance and electrical insulation required by the process.

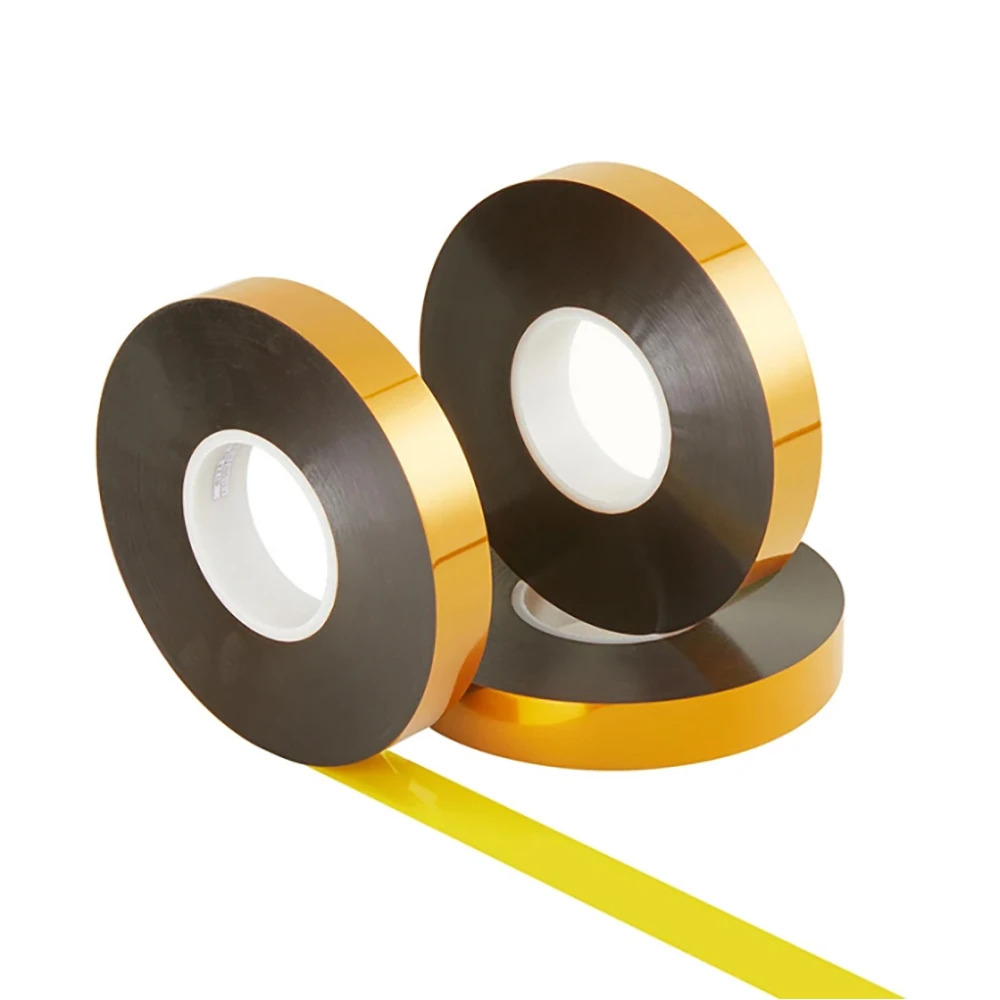

TF300 is a polyimide tape made with polyimide film and acrylic adhesive. It is used for PCB masking and can also be applied to circuit board insulation, coil wrapping, and battery insulation.
Polyimide Film and Adhesive Construction
The polyimide film provides a combination of electrical, thermal, chemical, and mechanical properties, along with high dielectric strength. These properties make it suitable for applications where insulation and resistance to demanding conditions are required.
TF300 uses acrylic adhesive on the polyimide film and is available in seven thicknesses from 0.03 mm to 0.1 mm.
Why Polyimide Tape Is Used for PCB Masking
During PCB processing, masking tape needs to remain securely attached while the board goes through the required manufacturing steps. This is particularly relevant to processes such as etching and wave soldering.
TF300 has a temperature rating of 110°C (248°F) and an H insulation class across all available thicknesses. These properties support its use in PCB masking where both heat resistance and electrical insulation are required.
Key Properties of Polyimide Masking Tape
The right masking tape depends on the conditions of the process and the requirements of the application. For electronic manufacturing, temperature resistance, insulation, adhesion, and mechanical strength are key properties to consider.
High Temperature Resistance
TF300 has a temperature rating of 110°C (248°F) for all seven available thicknesses. This allows it to be used as a polyimide tape for powder coating as well as in PCB masking applications.
Electrical Insulation and Dielectric Strength
TF300 has an H insulation class across its available specifications. The polyimide film also provides high dielectric strength.
These properties are relevant to applications such as circuit board insulation, coil wrapping, and battery insulation, where electrical separation is required.
Stable Adhesion and Clean Removal
Adhesion affects how securely masking tape stays on the surface during processing. TF300 has adhesion to steel ranging from 3–4 N/25mm to 9–10 N/25mm, depending on the specification.
The acrylic adhesive and silicon adhesive protection leave no residue. For a specific substrate or process, testing can be used to confirm the required adhesion and removal performance.
Mechanical Strength and Durability
TF300 has tensile strength values ranging from ≥8 N/25mm to ≥60 N/25mm across the available specifications.
Since the tensile strength differs between thicknesses, this value can be considered together with adhesion and thickness when selecting a specification for a particular application.
Polyimide Tape Applications in Electronics
TF300 is used in several electronic manufacturing processes, including PCB masking, circuit board insulation, etching, wave soldering, semiconductor manufacturing, coil wrapping, and battery insulation. In PCB production, it can protect selected areas during etching and wave soldering, while its insulation properties support circuit board and component insulation. It can also be used for coil wrapping and battery insulation, where the tape serves as an insulating layer around electrical components. In semiconductor manufacturing, TF300 can be used for masking and protection during processing. These applications make polyimide tape useful across different stages of electronic component manufacturing.
TF300 Polyimide Tape for Electronics
TF300 is a polyimide film adhesive tape for electronic and industrial applications. In addition to PCB masking, its listed applications include circuit board insulation, etching, wave soldering, semiconductor manufacturing, coil wrapping, battery insulation, automotive sensors and manifolds, fiber optics cable, and high-temperature powder coating.
TF300 Specifications
The available TF300 specifications are shown below:
| Total Thickness | Adhesion to Steel | Tensile Strength | Temperature Rating | Insulation Class |
| 0.03 mm | 3–4 N/25mm | ≥14 N/25mm | 110°C (248°F) | H |
| 0.035 mm | 3–4 N/25mm | ≥14 N/25mm | 110°C (248°F) | H |
| 0.05 mm | 5–6 N/25mm | ≥8 N/25mm | 110°C (248°F) | H |
| 0.055 mm | 4–6 N/25mm | ≥8 N/25mm | 110°C (248°F) | H |
| 0.06 mm | 9–10 N/25mm | ≥60 N/25mm | 110°C (248°F) | H |
| 0.08 mm | 5–6 N/25mm | ≥60 N/25mm | 110°C (248°F) | H |
| 0.1 mm | 6–10 N/25mm | ≥60 N/25mm | 110°C (248°F) | H |
Available Thicknesses and Adhesion Levels
TF300 is available from 0.03 mm to 0.1 mm in total thickness. Adhesion to steel ranges from 3–4 N/25mm to 9–10 N/25mm, while tensile strength varies from ≥8 N/25mm to ≥60 N/25mm.
When selecting a specification, thickness, adhesion, and tensile strength can be considered together based on the requirements of the intended process.
Temperature Rating and Insulation Class
All listed TF300 specifications have the same 110°C (248°F) temperature rating and H insulation class.
This provides a consistent baseline across the available thicknesses, while adhesion and tensile strength vary by specification.
Conclusion
Selecting a masking tape for PCB processing requires consideration of the manufacturing conditions as well as the tape’s physical and electrical properties. Thickness, adhesion, tensile strength, temperature rating, and insulation class can all affect whether a specification is suitable for a particular application.
TF300 combines polyimide film with acrylic adhesive and is available in seven thicknesses from 0.03 mm to 0.1 mm. It is designed for PCB masking and can also be used for circuit board insulation, etching, wave soldering, semiconductor manufacturing, coil wrapping, battery insulation, and high-temperature powder coating. For TF300 specifications, application details, or bulk requirements, contact our team for product information and a quotation.
FAQ
1. What is polyimide tape used for in PCB manufacturing?
Polyimide tape is used to mask and protect selected areas of circuit boards during processes such as etching and wave soldering. It can also provide electrical insulation for circuit boards and components during assembly and processing.
2. What temperature is TF300 rated for?
All listed TF300 specifications have a temperature rating of 110°C (248°F) and an H insulation class.
3. What thicknesses are available for TF300?
TF300 is available in seven total thicknesses: 0.03 mm, 0.035 mm, 0.05 mm, 0.055 mm, 0.06 mm, 0.08 mm, and 0.1 mm. Adhesion to steel and tensile strength vary according to the specification.
